Description

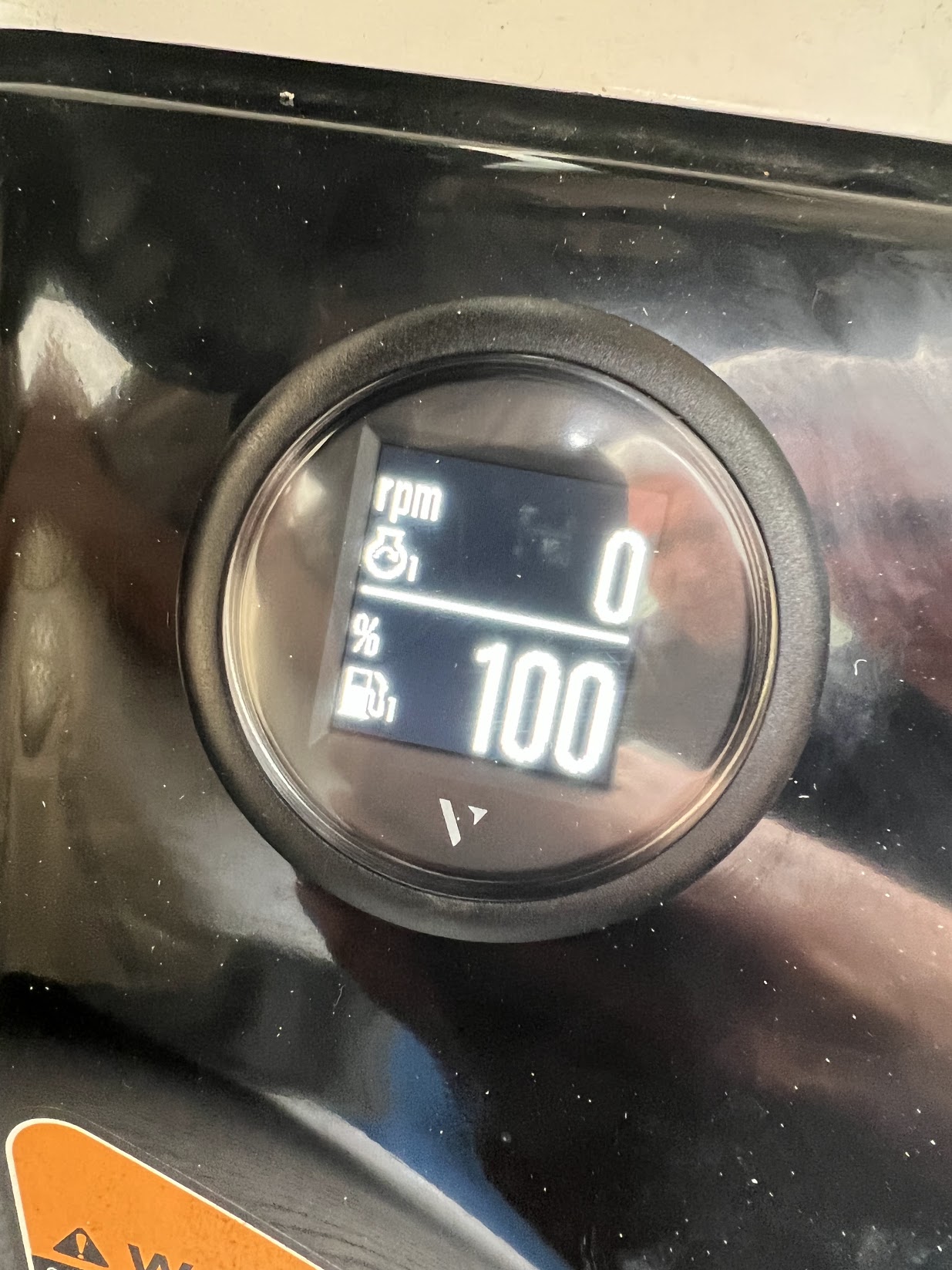

MACSBOOST SXR1500 Gauge Fuel and Tachometer kit is a plug and play solution to get accurate fuel levels and tachometer on your Kawasaki jet ski buoy missile. The high brightness swiss made marine performance gauge comes ready to go with a plug and play harness and calibrated for accurate fuel levels. The gauge uses the stock fuel sender and uses a multi point calibration for maximum accuracy.
Unlike other options our gauge is truly easily readable at speed. What good is an instrument you can’t see clearly?
Every 20% is approximately 1 gallon with 1 gallon as a reserve below 0%. There are no “bars” this gauge reads fuel level percentage in 1% increments. RPM is in increments of 100. Only one 2-1/16 gauge hole is needed for mounting. Power is electronically controlled on/off by the ECU so there is no additional significant drain on the battery.

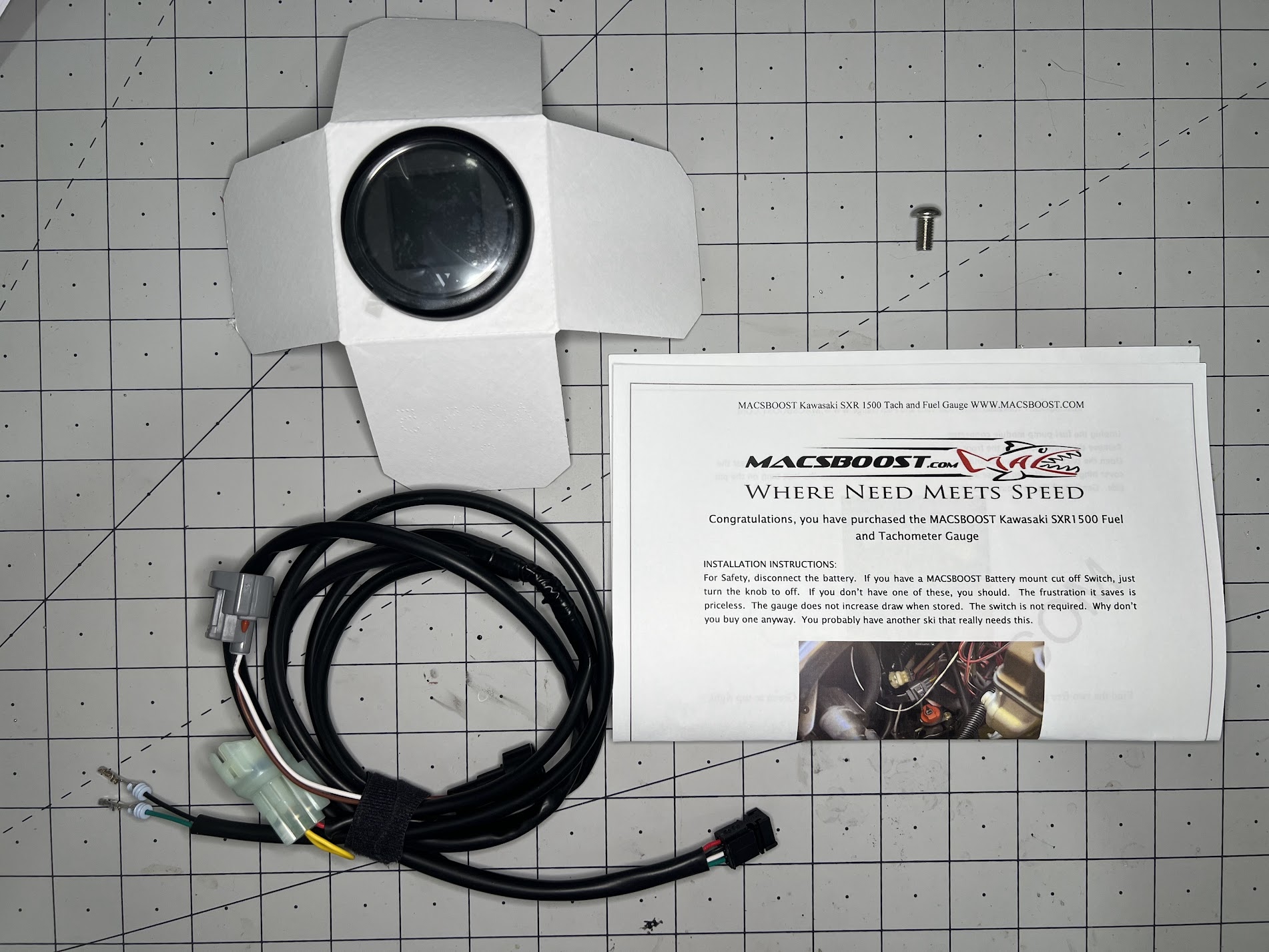

Kit is shipped with custom plug in harness and is calibrated specifically for the Kawasaki SXR-1500 Jet ski application. There is no cutting splicing or guesswork. The installation is factory quality. The gauge is manufactured in Switzerland. Rolex quality without the rolex price. You get the most accurate, best quality, easiest to read gauge you can buy.

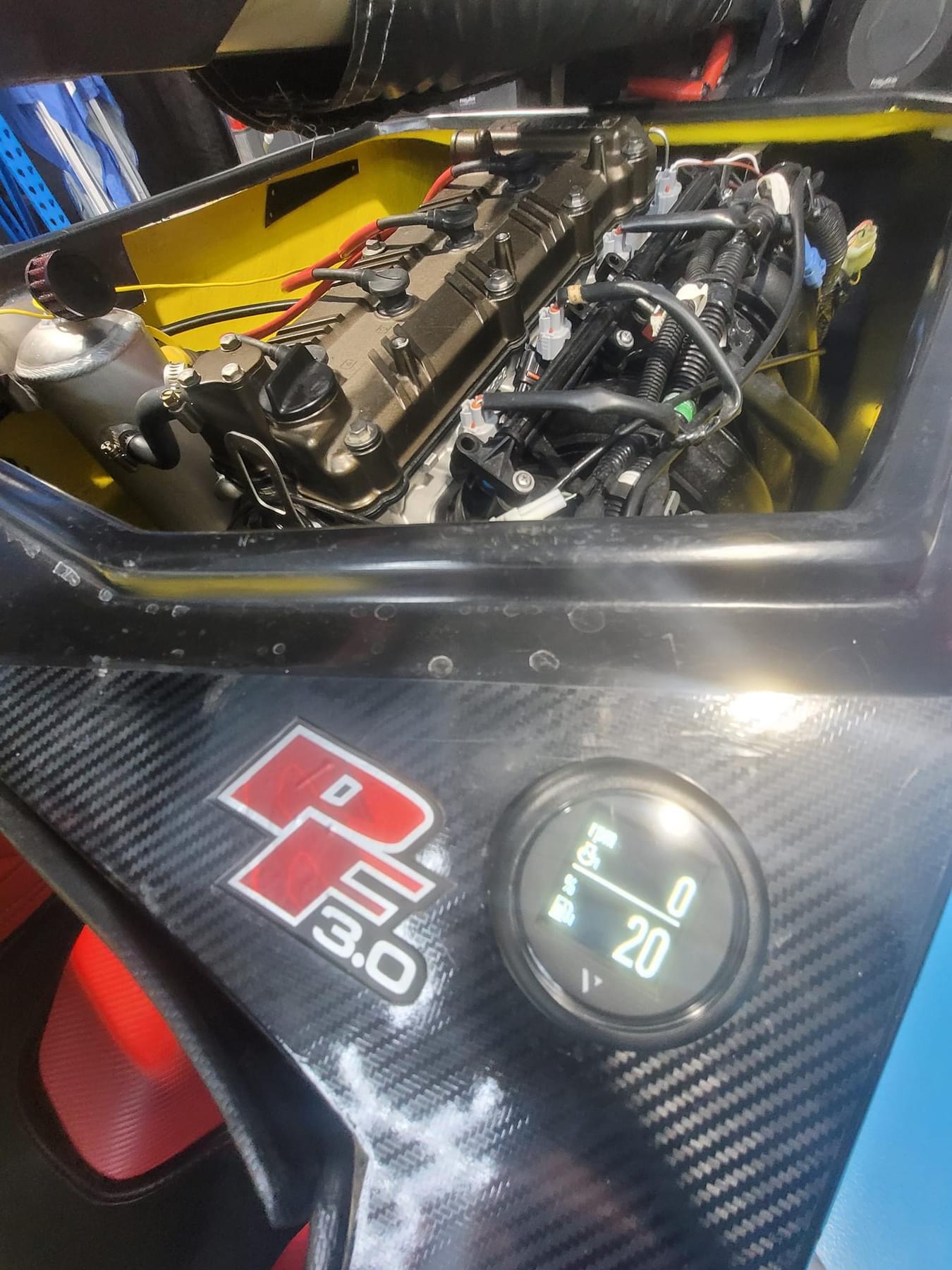

NOTE: To mount on the right side of the dash as shown, the MACSBOOST Velocity stack intake is required. You must remove the stock airbox. The gauge can be left hand mounted or mounted off center on the right if you wish to keep the airbox. The harness is configured best for right hand mounting with the airbox removed.
https://prowatercraftracing.com/proforce3/Pro Watercraft, Pro force 1500 engine compatible.

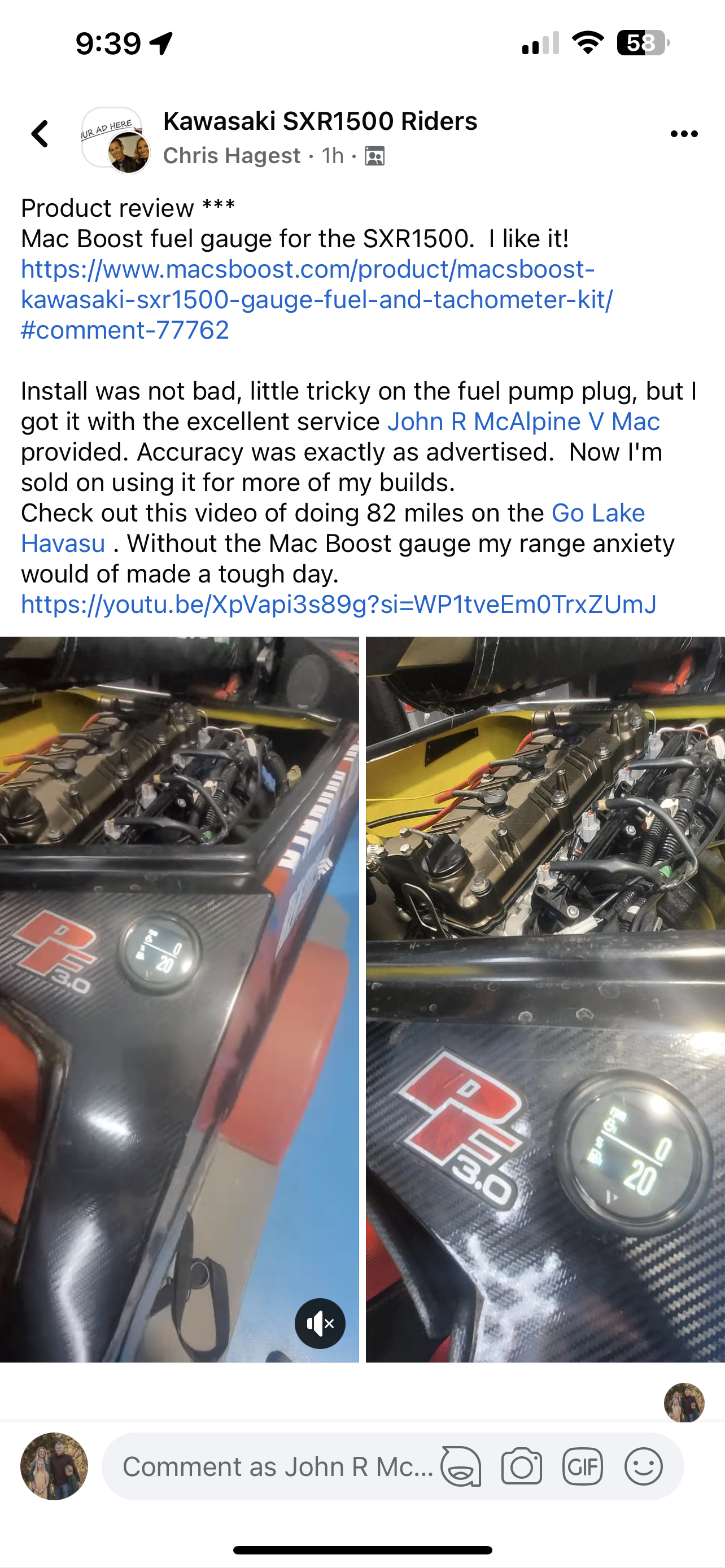

Christopher Saulnier (verified owner) –
Kawasaki should include a fuel gauge on the SXR 1500, but doesn’t. Thankfully Mac solved the problem. The gauge works and removes the always present question “how much fuel is in the tank”. I learned that this does not work with the stock air intake box so order the Velocity Air Stack too.
supermac –
Yes, true. The area on the right side of the dash is cramped with the stock airbox. We do have customers that have mounted there and kept their airbox but it does require mounting more to the outer edge than shown. Be sure to measure twice and cut once! If you do delete the stock airbox (recommended) you have unlimited room and can mount in the location shown. We do offer an awesome hydrophobic velocity stack intake that is what most racers and rec riders use.
rob –
hey there, i have a few questions about your sxr1500 fuel gauge/tach and the big foot filter, couldn’t find any other way to reach you, look forward to your response, thanks,
Rob.
supermac –
The about page has our phone number/email.
